Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers

Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers

Large Image :  Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers

Product Details:
Place of Origin: Guangdong, China
Brand Name: KEYDEONE
Model Number: KDW-Karm4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Rp 2.204.332-2.755.415
Contact Now Chat Now

Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers

Description
Name: Articulated Arm Gate Openers Motor: Dc Brushless Motor
Feature: Easy Operation, Computer Control Panel After-sale Service: Online Technical Support
Project Solution Capability: Total Solution For Projects, Cross Categories Consolidation Application: Gate, Industrial, Auto Door, Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Ou
Design Style: Modern Maximum Load: 150KG
Rated Power: 40W Main Material: Aluminum / Alloy
Thickness: Copper Wire Input Voltage: Dc 24V
Product Name: Light Duty Articulated Arm Swing Gate Opener Motor: DC 24V Brushless Motor
Usage: Swing Gate Opened Function: Control Rolling Door Motor
Limit Switch: Hall Sensor Remote Control: 433MHz
Open Style: Single Open Double Open Open(close) Speed: 3-7s/90
Control: External Trigger Signal\Access Control System\Remote Access Temperature Range: -86'F~149'F
Highlight:

Industrial Articulated Arm Gate Openers

,

Hotel Articulated Arm Gate Openers

,

Industrial Swing Gate Opener

24V Light Duty Industrial Hotel Articulated Arm Swing Gate Opener Brushless Motor Access Control Interface Anti-Pinch Protection





Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
Silver / Black Options
Fits Different Environment Themes
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
Multiple Installation Methods
Fits Various Door Opening Directions and Positions
KEYDEONE Karm4 Series Side-Mount Electric Door Opener is available in two versions: Articulated Arm and Sliding Arm. The Articulated Arm version supports both push and pull opening. In some inward-opening installations where the side clearance from the wall is limited, the wall may obstruct the articulated arm during operation. In this case, the Sliding Arm version is recommended. For installation options, please refer to the diagram above or contact our sales team for confirmation.
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
DC Brushless Motor
High Torque for More Door Types
Karm4 is equipped with a 24V 45W high-power DC brushless motor. Combined with a 1:180 gearbox, it delivers up to 90 Nm of torque and can drive doors up to 2 m high, 1.5 m wide, and within 120 kg.
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers

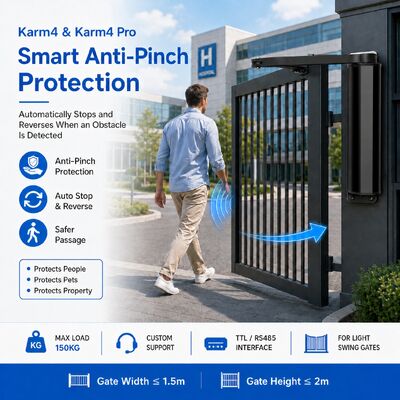

Intelligent Obstruction Rebound
Safer Access Every Time
Karm4 Series door openers feature built-in obstruction rebound. When the door meets resistance during operation, it automatically stops and moves in the opposite direction:
1.Obstruction during closing → stops → reopens
2.Obstruction during opening → stops → recloses
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
Optional Contactless Anti-Pinch Devices: Microwave Anti-Pinch Sensor / Human Detection Anti-Pinch Sensor
⚠️: A microwave anti-pinch sensor can be used on the rear side of the door opening direction. On the front side, since the microwave sensor cannot distinguish pedestrians from the door itself, it may prevent the door from closing properly. Therefore, a human detection anti-pinch sensor must be used.
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
Dual-Door Linkage Interface
Linked Opening for Double Doors
The Karm4 Series includes a dual-door linkage interface, supporting automatic linked opening for double doors and unequal double doors. Operation logic:
1.Double doors: after receiving an opening signal, both doors open and close simultaneously.
2.Unequal double doors: after receiving an opening signal, one door opens first, followed by the other.
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers

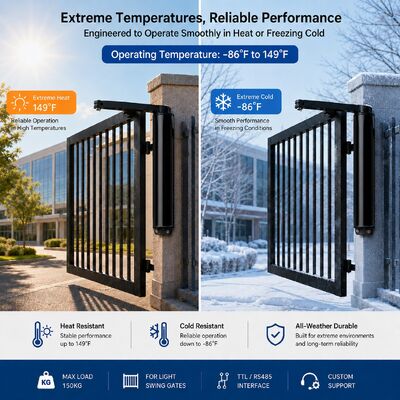

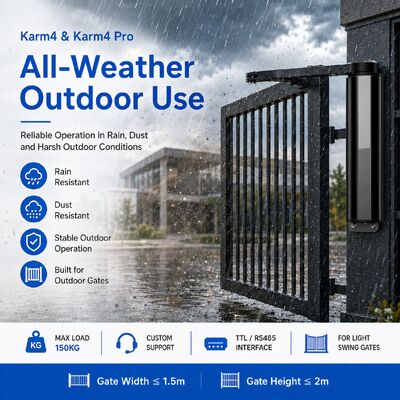

Outdoor Rain & Dust Protection
Heat and Cold Resistant for Harsh Environments
The Karm4 Series Side-Mount Electric Door Opener is built for outdoor use with dust and rain protection. Tested by KEYDEONE Lab, the motor operates reliably in extreme temperatures from -30°C to 65°C, ensuring stable performance in both northern and southern regions.
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
Compatible with Multiple Access Controls
Enjoy Smart Door Opening
KEYDEONE Karm4 is compatible with card, fingerprint, face recognition, microwave, and human detection access control devices on the market. It can also connect to Wi-Fi or 4G mobile remote opening and smart home control modules. Existing access control devices can be reused, or you may contact customer service to purchase compatible accessories from our store.
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
Compatible with Multiple Door Locks
Enhanced Security with Lock Integration
Karm4 Series door openers use a gear-driven motor structure, so the door can still be pushed open by force after closing. If locking is required, it can be used with 12V-triggered locks such as magnetic locks, electric bolt locks, smart locks, and horizontal electric locks. Compatible with 80% of access control locks on the market. Please contact customer service for details.
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
KEYDEONE Karm4 Series
Product Specifications, Dimensions & Details

Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
Industrial Swing Gate Opener , 24V Light Duty Hotel Articulated Arm Gate Openers
