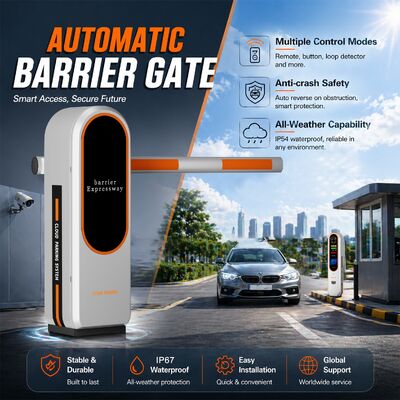

6 Meter Boom Length Barrier Gate with 5000KG Load and IP67 Protection for Toll Stations and Commercial Parking Lots

Large Image : 6 Meter Boom Length Barrier Gate with 5000KG Load and IP67 Protection for Toll Stations and Commercial Parking Lots

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Keydeone
Model Number:	KDW-BG-L50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$240

Contact Now Chat Now

6 Meter Boom Length Barrier Gate with 5000KG Load and IP67 Protection for Toll Stations and Commercial Parking Lots

Description

Load Capacity:	5000 Kg	Type:	Parking System
Warranty:	1 Year	Number Of Pieces:	1
Color:	Black
Highlight:	ip67 license plate recognition , ip67 license plate number recognition

Company Profile

About Us

Headquartered in Shenzhen, Guangdong, Zhongke Jietong is a premier integrated enterprise specializing in the R&D, manufacturing,and sales of comprehensive access control solutions.

Our Core Products

Our extensive product range covers pedestrian and vehicle access systems, diverse access devices, and door control products.

Why Choose Us

Driven by a professional team of engineers and supported by a robust supply chain, we are committed to delivering dependable products and providing rapid, responsive after-sales service to support your business.

R&D Team

Marketing Team

After-sales Team

Sheet Metal Workshop

Motor Production Shop

Assembly Workshop

KDW-BG-L30 Product Profile

The KDW-BG-L30 is a boom barrier designed for vehicle access control. It is widely used in parking lots, shopping centers, residential communities, public venues, hospitals, agencies, and luxury villas. Available with straight, fence, folding (height-limiting), or safety foam arms to meet diverse application needs.

Powered by a 24V DC brushless motor, the system delivers high torque and precise Hall-effect positioning with minimal heat generation. Additionally, the crank arm allows for flexible adjustment to suit both left-hand and right-hand installations. The system features a dedicated control board designed for DC brushless barrier gates.

It allows for easy adjustment of rising/falling speed, travel angle, soft start/stop buffering, and auto-reverse upon obstacle detection. It also supports vehicle counting via loop sensors. The mainboard features extensive external interfaces, allowing seamless integration with License Plate Recognition (LPR) systems, card readers, facial recognition terminals, anti-crush radars, and loop detectors.

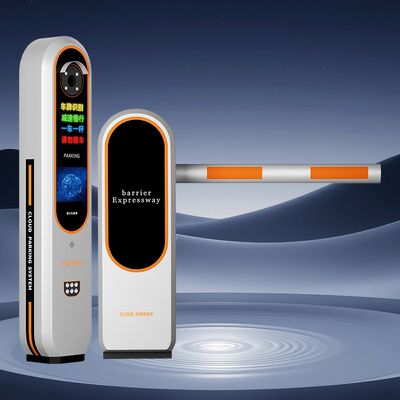

All-in-One LPR System⤴

Designed for vehicle entry and exit control, this system uses recognition algorithm to identify license plates and grant access by cross-referencing a database.

It also integrates with toll systems to charge visitor vehicles by time, frequency, or monthly/annual parking.

Card Access Terminal⤴

The barrier gate is controlled via an Access Control Terminal. When integrated with the system, you can configure card validity periods and access frequency limits.

The terminal is compatible with most third-party access systems that feature relay signal output. Please contact us for specific details.

Facial Recognition Terminal⤴

Offers superior security compared to card access systems by eliminating the risk of card sharing.

Supports integration with standard third-party devices featuring switch signal output. Please contact us for detailed information.

Rfid Proximity Reader⤴

Designed for non-motorized vehicle checkpoints, simply affix the Rfid tag to the front of the vehicle.

As it enters the reader's detection zone, the system automatically verifies it against the internal whitelist and grants access. It also integrates with system to enforce various access control rules.

Millimeter-wave Safety Radar⤴

It serves two critical safety functions: ensuring the boom lower only after vehicles have passed, and providing anti-crush protection.

The radar detects objects in the barrier's path instantly. If an obstacle is detected during the lowering process, the boom automatically retracts, significantly enhancing operational safety.

Traffic Light Interlocking⤴

The main control board features dual relay outputs for 'Fully Open' and 'Fully Closed' status. You can connect external traffic lights equipped with relay interfaces to enhance traffic safety.

Colors & Dimensions

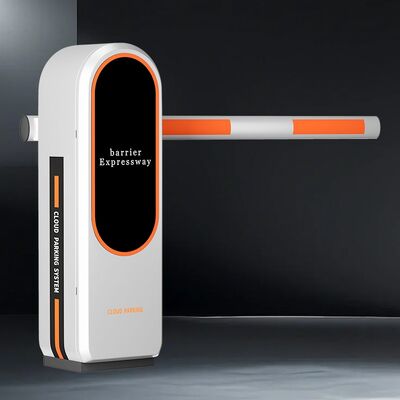

KDW-BG-30 Silver

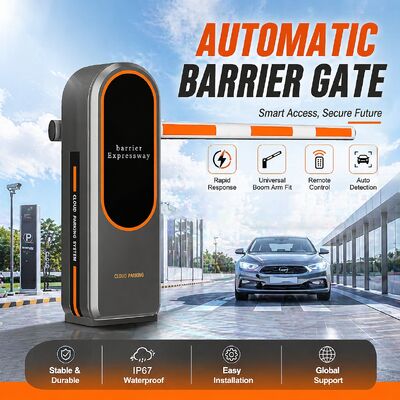

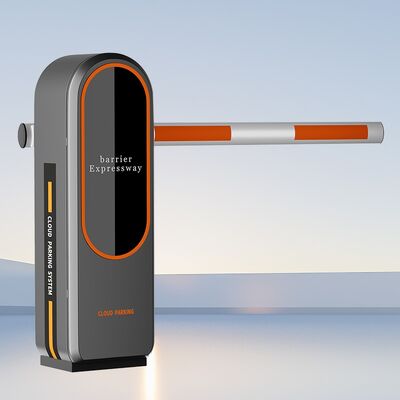

KDW-BG-30 Black

Cabinet Dimensions (without Arm)
Height (mm)	Front Width (mm)	Side Width (mm)	Net Weight (Kg)
1350	320	260	36.15

Packing Dimensions (without Arm)
Height (mm)	Front Width (mm)	Side Width (mm)	Net Weight (Kg)
1085	380	370	38.15

Boom Types

Oval Straight Boom Type (Click above to see it in action) ⤴

Straight Boom Type (Click above to see it in action) ⤴

Telescopic Boom Type (Click above to see it in action) ⤴

·Supports custom boom lengths up to 6 meters (including the housing unit)

·Length vs. Raising/Lowering Time:

·Length < 2000 mm: Approx. 1.5s
·Length < 3000 mm: Approx. 1.5s
·Length < 4000 mm: Approx. 3s
·Length < 5000 mm: Approx. 4s
·Length < 6000 mm: Approx. 4s

Anti-Smash Foam Boom Type (Click above to see it in action) ⤴

·Supports custom boom lengths up to 4 meters (including the housing unit)

·Built-in stainless steel tube for structural support

·Foam exterior casing

·Automatic boom detachment upon impact

·Length vs. Raising/Lowering Time:

·Length < 2000 mm: Approx. 1.5s
·Length < 3000 mm: Approx. 1.5s
·Length < 4000 mm: Approx. 3s

90° Folding Boom Type (Click above to see it in action) ⤴

·Supports custom boom lengths up to 5 meters (including the housing unit)

·Standard boom bottom safety edge strip

·Length vs. Raising/Lowering Time:

·Length < 2000 mm: Approx. 2s
·Length < 3000 mm: Approx. 2.5s
·Length < 4000 mm: Approx. 3s
·Length < 5000 mm: Approx. 4s

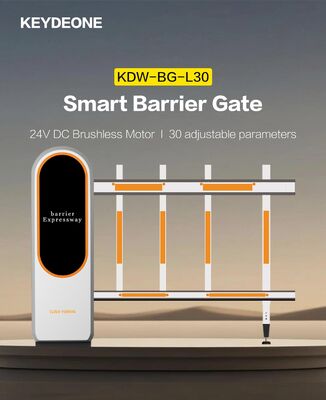

Fence Boom Type - A (Click above to see it in action) ⤴

·Supports custom boom lengths up to 5 meters (including the housing unit)

·Standard boom bottom safety edge strip

·Length vs. Raising/Lowering Time:

·Length < 2000 mm: Approx. 1.5s
·Length < 3000 mm: Approx. 3s
·Length < 4000 mm: Approx. 4s
·Length < 5000 mm: Approx. 6s

·Optional waterproof LED traffic lights
·Optional pressure wave anti-crush rubber strip

Fence Boom Type - B (Click above to see it in action) ⤴

·Supports custom boom lengths up to 5 meters (including the housing unit)

·Length vs. Raising/Lowering Time:

·Length < 2000 mm: Approx. 1.5s
·Length < 3000 mm: Approx. 3s
·Length < 4000 mm: Approx. 4s
·Length < 5000 mm: Approx. 6s

·Optional waterproof LED traffic lights

Internal Structure

Barrier Gate Motor Assembly

·24V Brushless DC Motor with 150W Peak Power

·Internal Hall Sensors for Precision Control
·Built with pure copper coils and powerful permanent magnets
·1.5 million cycles completed with zero failures; ongoing testing

Barrier Gate Controller

·26 User-Configurable Functions

·1-Channel External Control Interface (12V, Open, Close, Stop)
·1-Channel Safety Interface (12V, Infrared, Loop, GND)
·1-Channel Serial Port (GND, 5V, RX, TX)
·1-Channel Status Output (Open Limit, Closed Limit)
·1-Channel Power Output: 12V, GND (1A)

Barrier Gate Power Supply

·Wide Voltage Input: AC110～265V

·Output Voltage: DC24V _ 10000mA _ Max240W _50/60Hz
·Built-in Circuit Breaker, Automatically

·Trips on Short Circuit for Enhanced Safety

Barrier Gate Torque Balance Spring

·4 Spring Specifications _ Matched to Boom Type

·Leading Barrier Gate Manufacturer _ Proven Reliability
·Includes 2 Springs as Standard – Ensures Stable Tension

Standard Accessories

2 x 433MHz Remote Control

1 x Barrier Arm Mounting Kit

4 x Barrier Arm Mounting Bolts

2 x Gate Fixing Kit

4 x Expansion Bolt

2 x Cabinet Key

Project Photos

FAQ

Q: Are you a manufacturer or a trading company?

A: We are a factory in Shenzhen with a 4,500 sqm plant. Our vertically integrated setup covers everything from R&D to after-sales support. This allows us to offer factory-direct pricing, guaranteed lead times, and strict quality control.

Q: What products do you offer?
A: Your one-stop shop for access control. We offer a comprehensive range of security products, including parking barriers, pedestrian turnstiles, access control systems, locks, and gate openers. All devices are tested for compatibility and designed for easy system integration.

Q: Do you offer OEM or ODM services?
A: Yes, we fully support OEM/ODM services, we offer comprehensive customization, ranging from branding (Logo & packaging) to hardware and software parameter adjustments. The MOQ varies depending on your specific requirements, welcome to contact us for details.

Q: What are your shipping methods?
A: We support flexible shipping options. Samples are typically sent via international couriers like DHL or FedEx, while bulk orders are shipped via sea freight or rail freight. We will recommend the optimal solution solution based on your address and
delivery time.

Q: Is installation difficult? Will it work with my current system?
A: Designed for hassle-free installation, our products feature intuitive guides (manuals & videos) and pre-wired components to streamline setup. You can get everything installed quickly using just basic tools. Plus, they are built to integrate seamlessly with your existing infrastructure.

Q: What kind of after-sales support do you offer?
A: With a 1-year warranty and lifetime support, you’re covered for the long run. Our team is available 24/7 to provide rapid responses, providing video guidance and professional troubleshooting to resolve any issues.

If you have any further questions, please feel free to contact us. We will get back to you as soon as possible.
